How to Run Digital Concrete X-Ray on an Active Construction Site During Business Hours

What "Active Construction Site" Actually Means for X-Ray

When most coring and GPR companies picture X-Ray on an active site, they picture this: a floor cleared out, trades waiting in the stairwell, an after-hours crew working through the night. That image is accurate — for traditional film-based radiography. With digital concrete X-Ray, the picture is different.

Digital X-Ray jobs happen during regular working hours. Occupied office buildings, active construction floors with trades moving, tenant-occupied spaces — these are standard scenarios, not edge cases. The night shift, full-shutdown model is a legacy of older technology. This article explains what the actual day shift setup looks like in an active building, from the moment the crew arrives to the last shot.

What Gets Controlled — and What Doesn't

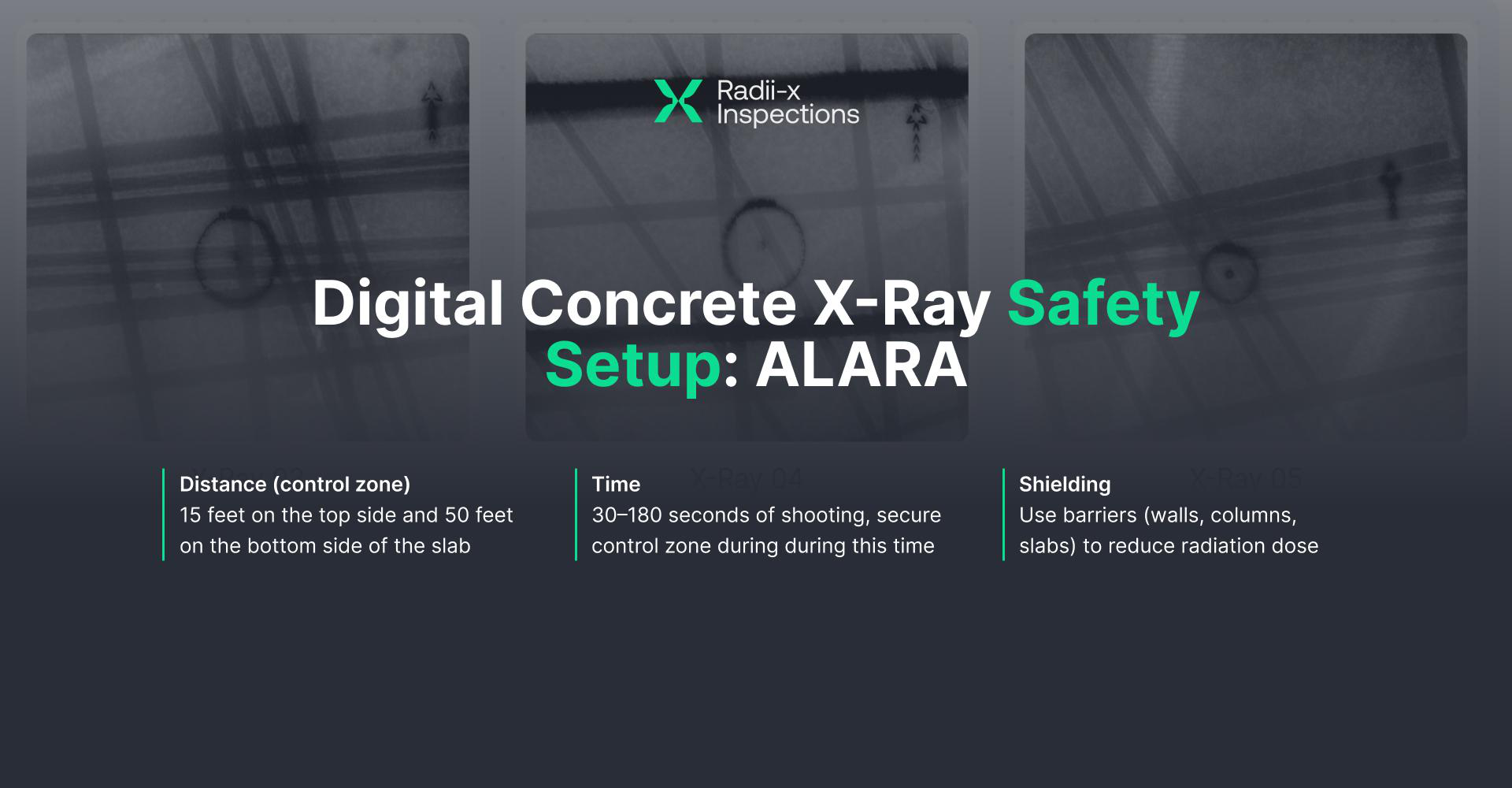

The concrete X-Ray controlled area during a digital shot is 15 feet on the working floor (top side) and 50 feet on the floor below (bottom side). These are the open-area numbers — and they only apply during the shot itself, which takes 2 to 3 minutes.

Two things reduce these numbers significantly in practice. First, timing: as soon as the shot ends, the controlled area is released. People and vehicles can move freely until the next shot begins. Second, building geometry: concrete walls, columns, and structural mass act as shielding. In a building with walls in place, the zone the crew actually controls is often smaller than the open-area baseline. The concrete itself is doing part of the job.

In most active buildings, this means identifying the corridors — the 1 to 3 paths where someone could actually reach the controlled zone during a shot — and closing those. If the building has walls in place, you're not clearing a radius on an open floor. You're closing a corridor for two minutes.

Arriving on Site: Coordination with the Super

The first conversation on site is with the superintendent. The goal isn't a formal safety briefing — it's one practical outcome: permission to ask trades for a 2 to 3 minute pause during each shot.

That means the super needs to introduce the X-Ray crew to the trades working on the floor. Not a long explanation — just enough to establish that when the crew says "two minutes," the request is legitimate and comes with the super's backing. Without that introduction, the crew has no authority to manage the zone during shots.

Beyond that, the super conversation covers: where the shots will happen, the sequence for the day, confirmation that both sides of the slab are accessible, and any parts of the floor that need special handling. Most supers, once they understand the controlled area is small and each shot is under three minutes, have no issues with the workflow.

For a full breakdown of the site workflow from equipment setup to post-processing, see the Digital Concrete X-Ray On-Site Workflow Guide.

Setting Up: Shielding and Zone Marking

With the super aligned, the crew sets up the controlled area before the first shot.

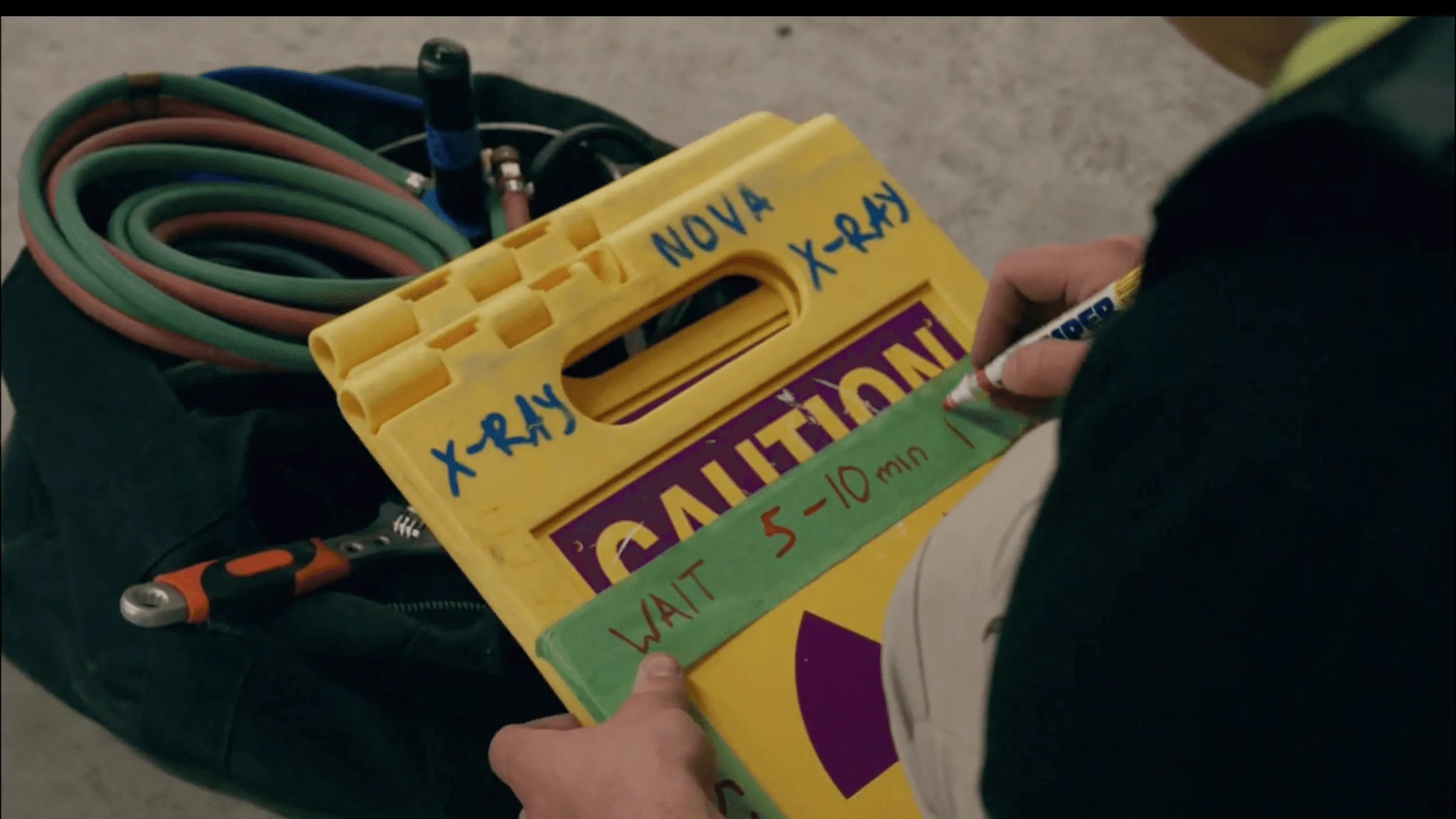

In a building with walls in place, the process is straightforward: identify the corridors where someone could walk into the zone, then close all but the most critical entry point. Most active floors have one to three access paths to the shot location. The crew places danger tape and radiation warning signs across the secondary corridors. The main entry point is where the operator positions themselves — with the control panel — for every shot.

For shielding, the operator uses the building itself wherever possible. A concrete column, a wall, or an elevator shaft between the operator and the X-Ray source provides effective shielding during the 2 to 3 minutes of each shot. On higher floors in a high-rise, elevator shafts are a common and practical position.

One important point: the area doesn't get closed at setup. Danger tape and barriers go up during preparation, but the controlled area is only enforced during the shot itself. Trades can move freely through the space while the crew is setting up, repositioning equipment, or reviewing images.

During the Shot: Managing Trades and the Controlled Area

Radiation is not visible. Unlike a hazard with a clear physical signal, there's nothing a person can see, hear, or feel that indicates exposure — which is exactly why the controlled zone and physical presence matter.

During each shot, the operator stands at the main corridor entry point with the control panel. Trades outside the zone keep working. The shot runs for 2 to 3 minutes. When it ends, the operator signals the area is clear and normal movement resumes until the next shot.

Each operator working with digital concrete X-Ray equipment has personal dosimeters and operates according to documented procedures. The OEP (Operation and Emergency Procedure) and RPP (Radiation Protection Program) prepared for each company define the controlled area dimensions, monitoring requirements, and protocols for every scenario. These documents are specific to the equipment and the operator's state registration.

For more on what training and documentation are required to operate legally, see Digital Concrete X-Ray Training and Certification.

If Someone Enters the Zone: Emergency Stop

It happens. A worker didn't notice the tape. Someone comes around a corner quickly. It's not frequent, but it's part of running X-Ray on an active site.

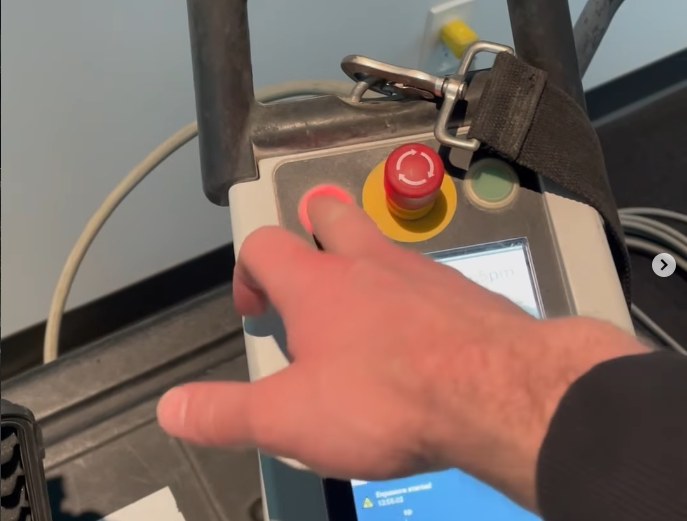

The response is immediate: the operator cuts power to the source. With digital X-Ray, this is straightforward because the source generates radiation using electricity — there is no radioactive material inside the unit. Press the stop button on the control panel, or pull the power cable from the outlet, and the radiation stops instantly. No mechanical process, no element to retract, no delay.

This is a meaningful difference from traditional iridium or cobalt-based sources, where stopping the exposure means physically retracting a radioactive element back into a shielded container. That process takes time and has its own failure modes. With an electric source, the operator standing next to the control panel is always one action away from a full stop — even just unplugging from the outlet.

In practice, a warning lamp on the source is visible from the edge of the controlled area. Most people who approach see it and stop. The operator monitoring the main corridor is the second layer. The emergency stop is there if it's needed — and it stops in seconds.

Shot Rhythm on an Active Floor

A well-coordinated active-site day looks nothing like a stop-start disruption. Once trades understand the two signals — warning light on means stay clear, light off and operator visible means you're clear to move — the shots become part of the floor's rhythm.

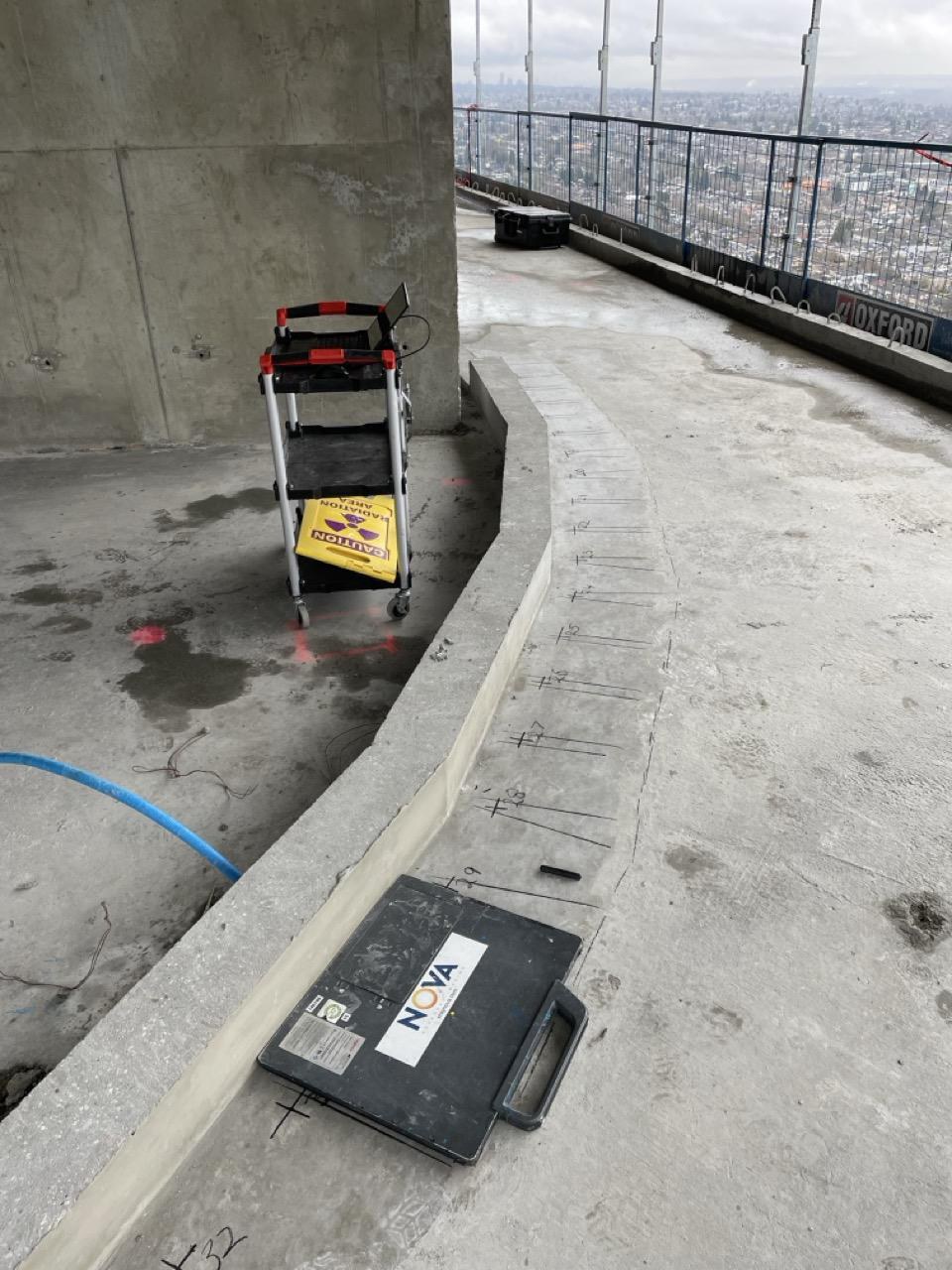

A real example: On an active 36th-floor high-rise in Vancouver, Canada, digital concrete X-ray was performed on the 31st–32nd floors. The crew completed 76 shots in two hours, with each 8-inch slab exposure lasting about 45 seconds. Other trades continued working on the same floors with minimal disruption. After a brief safety briefing ("if you see the crew in the zone, there is no radiation; if the red light is flashing and the zone is clear, wait"), the operation proceeded smoothly throughout the session.

That's not a best-case scenario. It's what a prepared, coordinated active-site job looks like when the rules are explained once and everyone follows them.

For a detailed account of how one company built this capability across multiple active-site jobs, see How Nova Built a Digital Concrete X-Ray Business with Radii-x.

Closeout: Releasing the Floor

When the last shot is done, the controlled area is released immediately. Danger tape comes down, signs and barriers come out, and the floor returns to normal. Removing the setup takes roughly the same time it took to put up.

What follows is post-processing — measuring the images, marking the safe coring locations on the slab, and generating the report. There is no radiation in this phase. The source is powered down; the crew is working with images on a laptop. The floor is fully operational while post-processing happens.

For a full breakdown of what happens after the images are captured, see Post-Processing in Digital Concrete X-Ray.

What Can Go Wrong

Active-site X-Ray problems almost always trace back to coordination, not equipment.

The most common failure: the super didn't communicate clearly with the trades. The crew has no authority to ask for pauses, trades don't understand the zone, and every shot becomes a negotiation. This is solved entirely in the pre-job conversation — the super introduction is not optional.

The second issue: someone ignores the tape and walks through the zone. Usually because they can't see any visible hazard and decide the barrier doesn't apply to them. The operator monitoring the main corridor is the line of defense here. The zone needs to be actively managed during every shot, not just marked and left.

The third: the zone was set up incorrectly. A corridor wasn't identified, a path was left open, or the operator's position didn't account for all the ways someone could approach the area. This comes down to training and the documented procedures in the OEP and RPP. Companies that follow those documents correctly don't have this problem.

For how clients perceive safety concerns from the other side, see 5 Real Objections Clients Raise About Digital Concrete X-Ray.

FAQ

Is digital concrete X-Ray a night shift job only?

No. Night shifts and full-floor shutdowns are a legacy of traditional radiography. Digital X-Ray operates with 2–3 minute shot windows and a controlled area that releases immediately after each shot. Running X-Ray in occupied buildings during regular hours is standard practice.

Does the whole floor need to shut down?

No. Only the controlled area — 15 feet on the working floor, 50 feet below — needs to be clear during each shot. In buildings with walls in place, the actual zone is often smaller. Everything outside the zone continues normally.

How long is the controlled area closed per shot?

2 to 3 minutes per shot. The area opens immediately when the shot ends. On jobs with thinner slabs, active exposure can be as short as 45 seconds.

How many people are needed to manage the zone?

By regulation, a minimum of two people are required: one on the bottom side where the source is placed, and one on the top side managing the controlled area. On a very active site — an occupied office floor, a main corridor, a stairwell, or a public parking area with constant foot traffic — a third person to control traffic during shots is strongly recommended. Two people can manage a standard active floor; three makes a high-traffic location much easier to run safely.

What happens if someone walks into the zone mid-shot?

The operator cuts power to the source immediately. Digital X-Ray uses an electric generator — there is no radioactive material inside. Removing power stops the radiation instantly, with no mechanical delay.

Do walls and concrete reduce the controlled area size?

Yes. Any concrete mass between the source and a person acts as shielding. The 15 ft / 50 ft figures are for open areas. In a building with walls in place, the area the crew actually needs to control is typically smaller.
