Why Digital Concrete X-Ray Is Superior to GPR Scanning
Digital concrete xray technology produces true photographic images of what lies inside concrete — not signals, not estimates. With Nova’s digital radiography system, our technicians can instantly identify:
Conduits — and whether they contain live wires or are empty
Post-tension cables — clearly visible when crossed by the beam
Rebar — including diameter, spacing, and layering
Voids, anomalies, and embedded elements others may miss
📊 GPR Has Critical Limitations
While Ground Penetrating Radar is commonly used, it cannot match the clarity or certainty provided by digital xraying.
Feature/Capability
Digital Xray
GPR Scanning
Image Output
High-resolution xray images
Signal reflections
Wires vs. Empty Conduits
✅ Clearly distinguishable
❌ Not possible
Post-Tension Cables
✅ Clearly visible
⚠️ Signal distortion possible
Rebar Size & Layering
✅ Visible and measurable
❌ Approximated only
Material Identification
✅ Yes – by density
❌ No
Depth Estimation
❌ Not available
✅ Available (estimated)
Interpretation Needed
Minimal – real images
High – experience-dependent
✅ Safety and Efficiency Built In
Low radiation output, fast exposure times
Minimal site disruption – smaller or no exclusion zones
Operates in tight spaces, including beneath occupied floors
Superior performance on metal mesh, wet concrete, or complex slab builds — where GPR often fails
🎯 When Precision Matters
Whether you're cutting, coring, or scanning for structural assessment, digital concrete xray eliminates guesswork.
May miss live conduits
Offers no insight into rebar size or layering
Cannot reliably identify post-tension cables in congested slabs
Confirms what’s there, and what’s not
Gives your team full confidence before cutting
Helps you avoid costly errors
🏆 The Digital X-Ray Advantage:
Instant imaging: results on-site, no waiting
Detects live power lines, empty pipes, rebar, post-tension cables
No interpretation guesswork — just crystal-clear radiographic results
Exceeds safety and quality standards
Trusted by concrete coring, cutting, and engineering professionals
Real cases

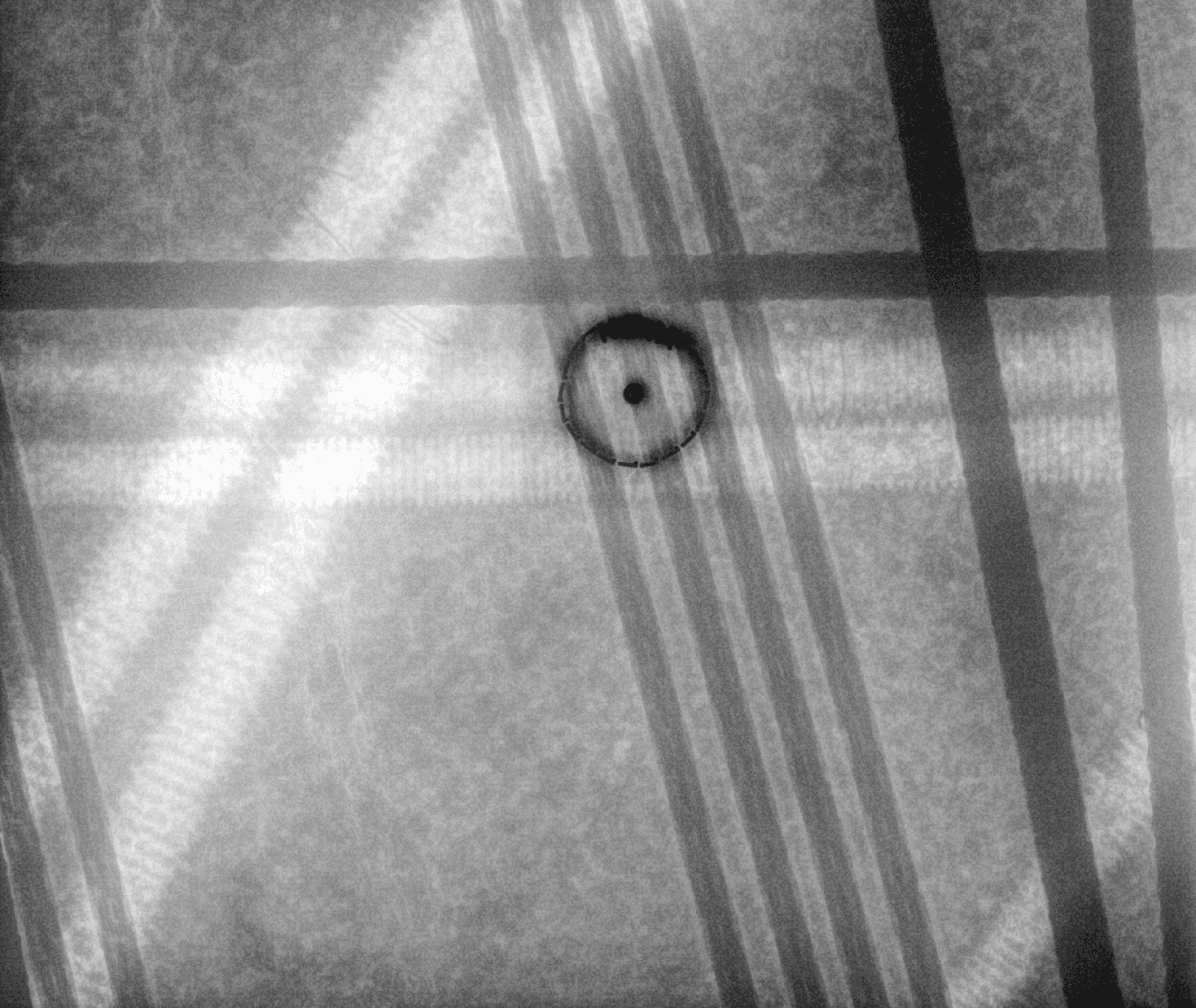

Case 1: 5 Conduits and 6 Post-Tension Cables

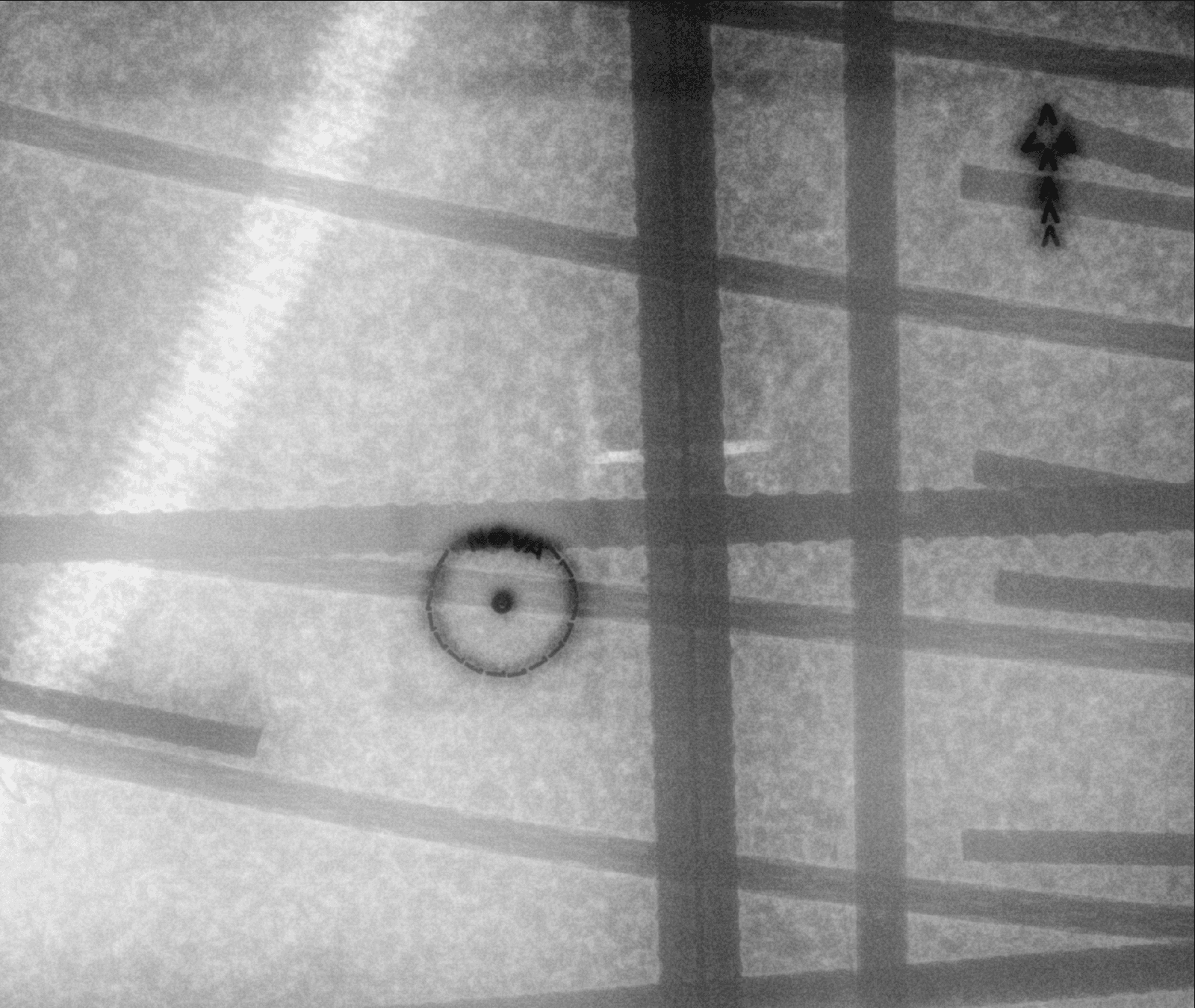

Case 2: 4 Post-Tension Cables

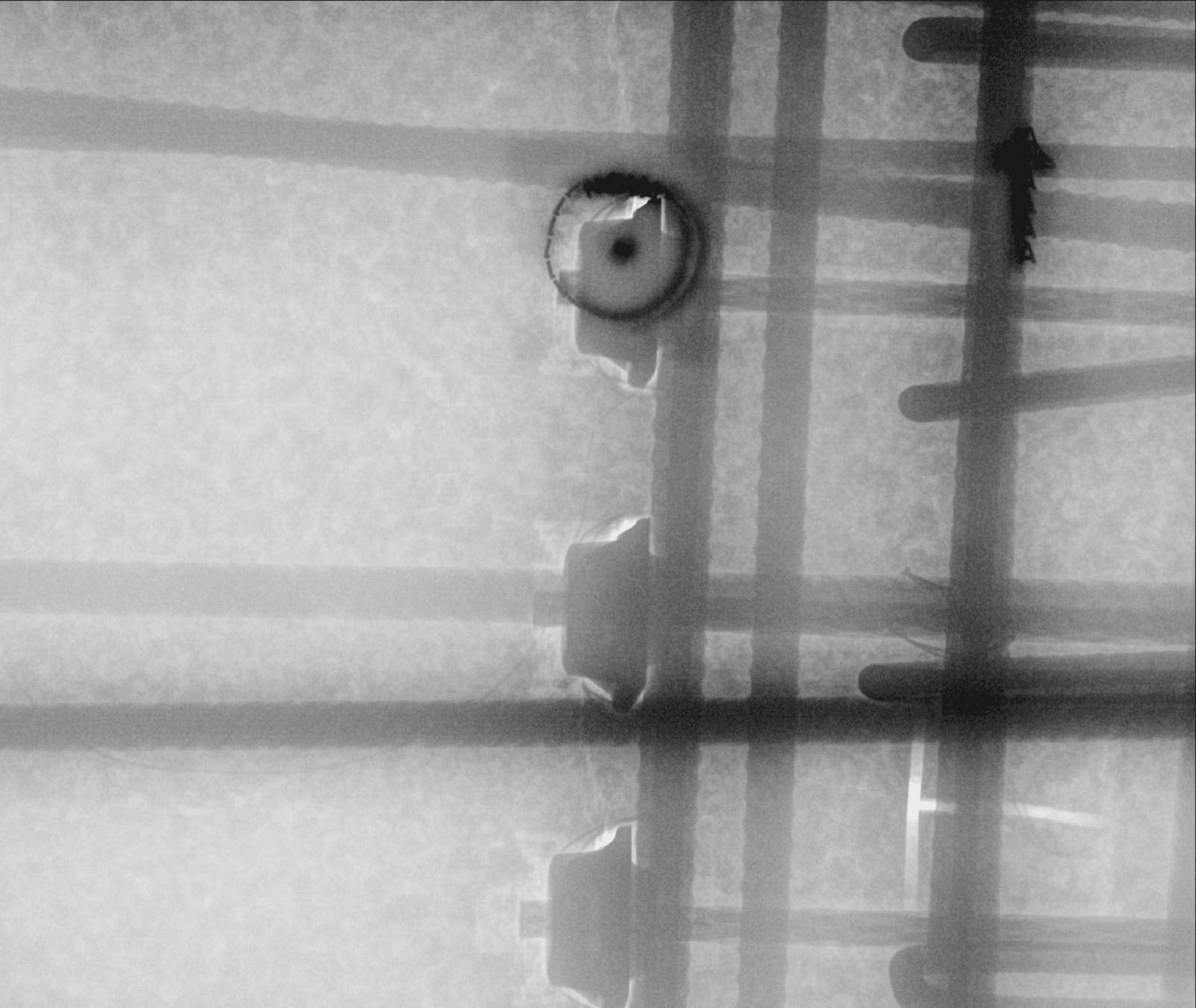

Case 3: Conduit & 4 Post-Tension Cables

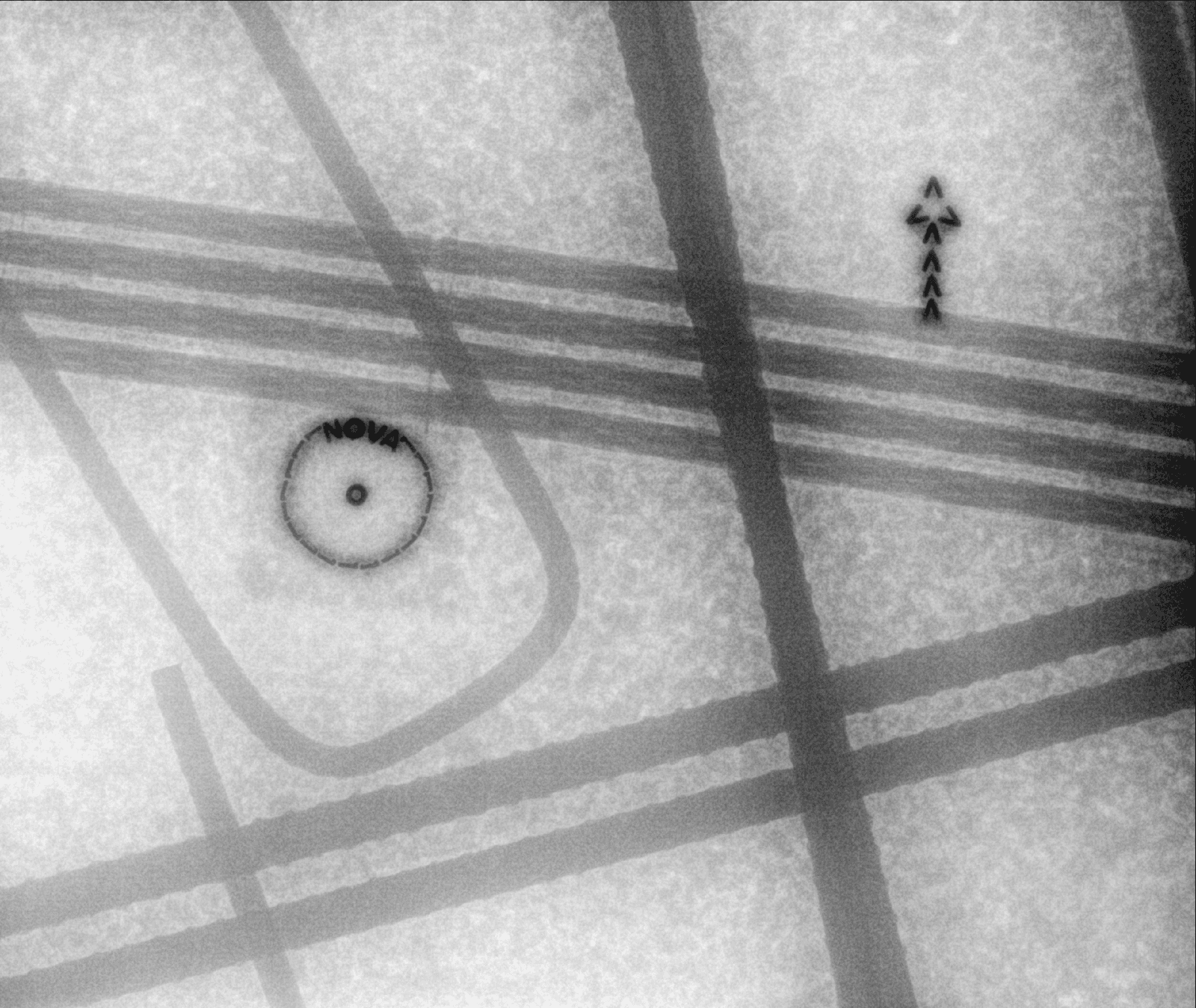

Case 4: Post-Tension Cable Bells
See What GPR Can’t
Choose Radii X Digital Concrete X-Ray systems for true clarity, true safety, and true results.
