5 Cases When Digital Concrete X-Ray Backs Up Your GPR Scan

A GPR scan is the first move on almost every coring job, and that doesn't change. This isn't an argument for picking a side between GPR and digital concrete x-ray. It's five specific site conditions where a GPR read alone isn't the full picture, and a digital x-ray machine is what actually closes the gap. None of these are rare, worst-case jobs — they're conditions a coring crew runs into on a regular basis.

First, a slab poured over metal deck, where the deck itself changes what the scan can tell you. Second, a slab carrying post-tension cables, where a wrong read costs a lot more than a normal mistake. Third, window pinning on a high-rise, where the tolerance for error is basically zero. Fourth, a job where cutting rebar has already been approved, and the real question is what's hiding underneath it. Fifth, a slab so busy there's no clean spot to fall back to. None of these cases are about a GPR operator getting something wrong. They're about knowing exactly when a second tool earns its place in the job.

A Tool That Works With You, Not Against You

A skilled GPR operator can get the full picture off a single scan — reading every hyperbola, checking each reflection against the last, working the slab carefully enough to catch what's ambiguous. That's real, valuable work. It's also a lot of pressure to put on one read, especially on a job that doesn't leave room to be wrong. A digital concrete x-ray scanner doesn't replace that work. Called at the right point in a scan, it adds a few minutes on site and removes the guesswork that would otherwise rest entirely on one technician's judgment. That's the difference between a tool that competes with your GPR workflow and one that closes it out — see the full on-site workflow for what that actually looks like step by step. The five cases below are where that extra confirmation earns its place.

Case 1: PanDeck/Q-Deck Slabs

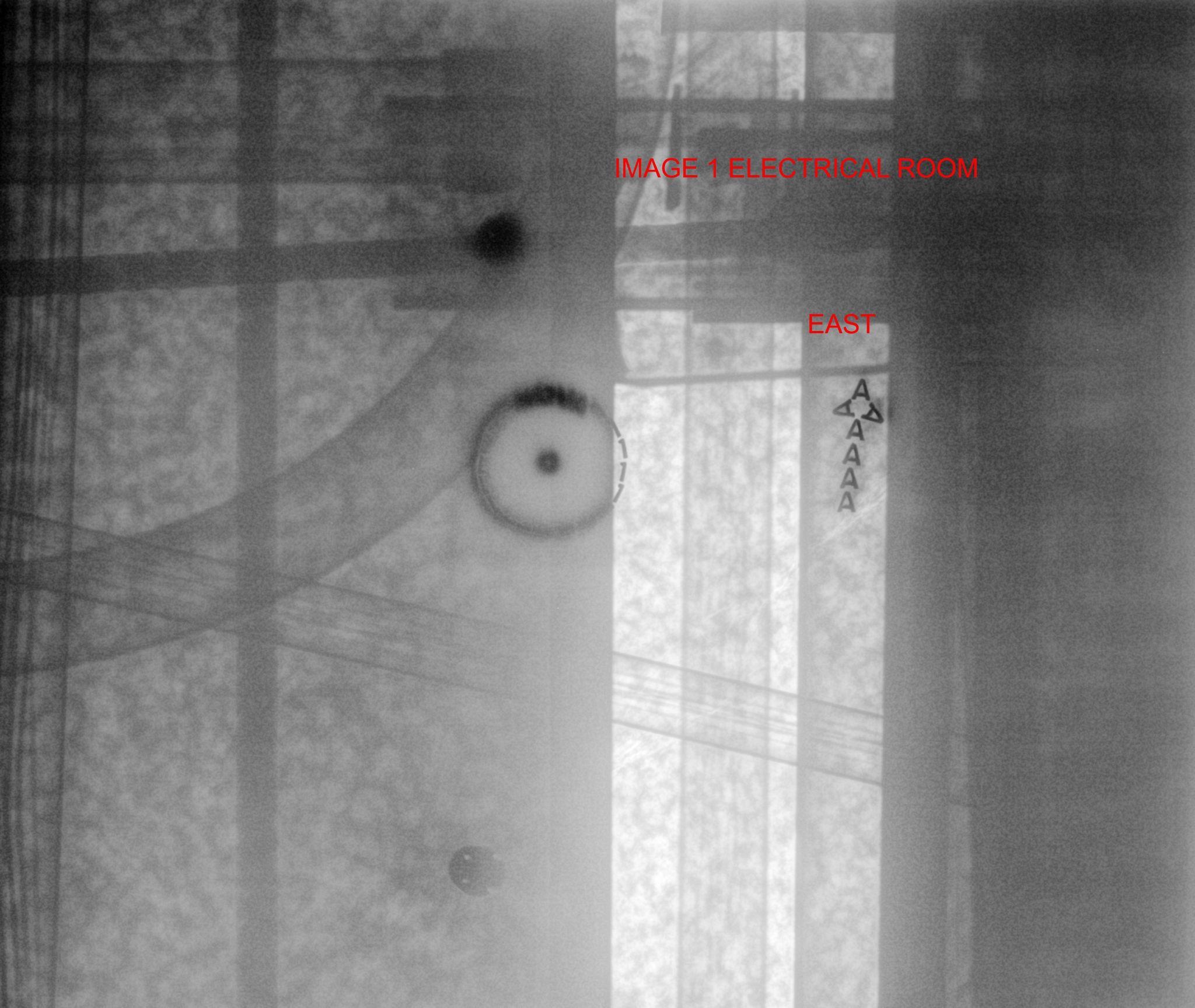

Composite metal deck slabs — PanDeck, Q-deck, and similar systems — are a specific problem for GPR. The corrugated steel deck sits directly under the concrete topping and reflects radar signal strongly enough to distort or mask what's happening above it and within the flutes. That's not a matter of the operator missing something or needing a slower pass — it's a physical limit of how GPR reads dielectric contrast, and metal deck breaks that contrast in a way concrete and rebar alone don't.

A digital x-ray machine isn't reading the slab the same way. It's recording radiographic density differences straight through the assembly, deck included, so it resolves what's actually happening around and above the deck rather than reading the deck itself — functioning as both a rebar x-ray machine and a full read of embeds the deck would otherwise obscure. On PanDeck and Q-deck work, that's less an occasional exception and more the standard case for adding a confirmation shot.

Case 2: Slabs With PT Cables

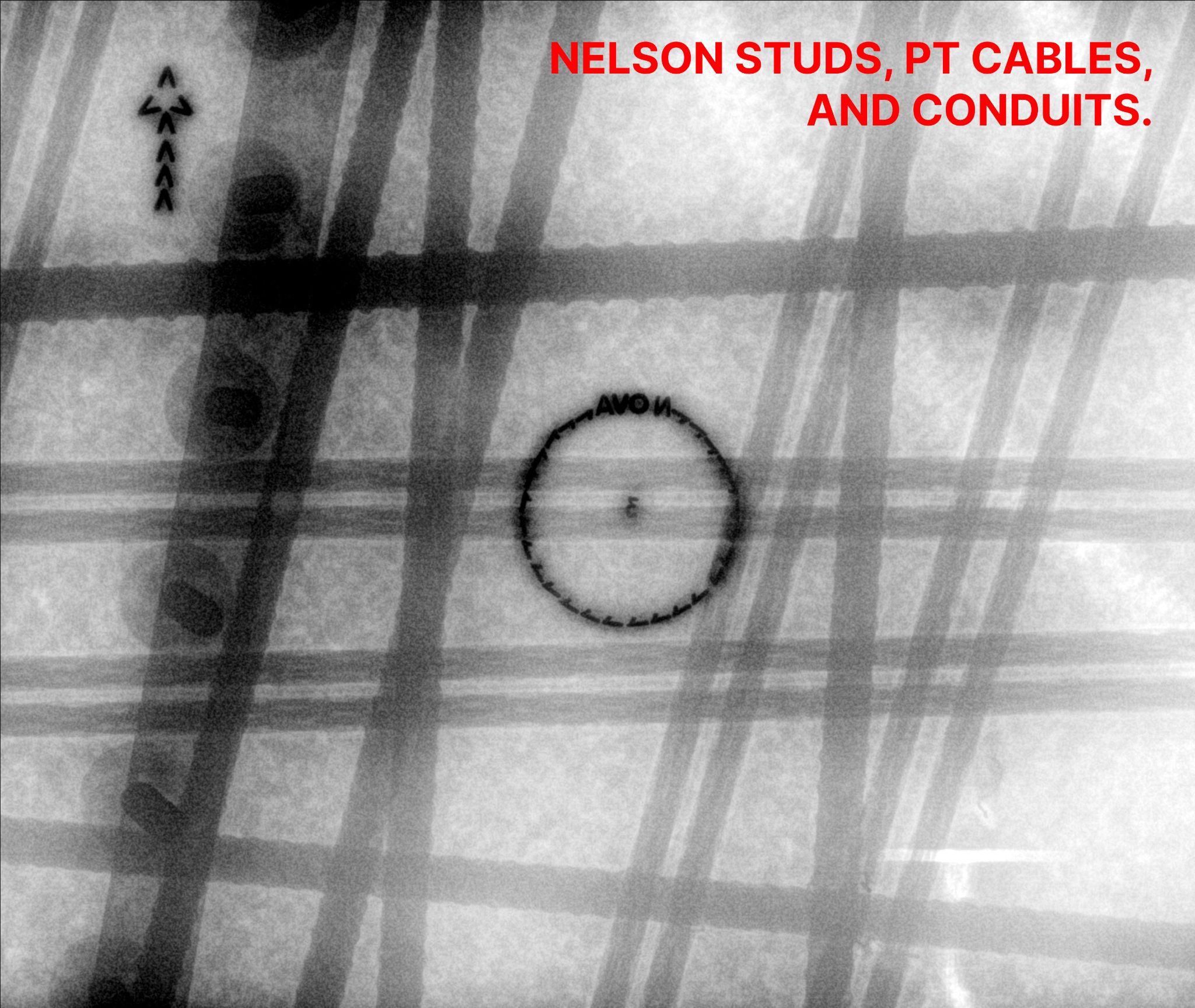

On a GPR scanner, a post-tension cable does show up — that's not in dispute. What's harder is telling it apart from a rebar hyperbola when the reflection sits close enough that only a genuinely experienced technician can call the difference with confidence. A PT cable that reads like just another bar is an easy mistake to make and an expensive one to get wrong.

Unlike most coring mistakes, a hit PT cable can't be patched or repaired — it has to be replaced outright, cable and anchorage both. On a mid-construction 35-story building, that replacement runs into the tens of thousands of dollars, plus the schedule impact of accessing and re-tensioning it. Where a GPR read shows anything that could be a PT cable, a digital concrete x-ray confirms the exact path before anyone puts a bit through the slab.

Case 3: Window Pinning in High-Rises

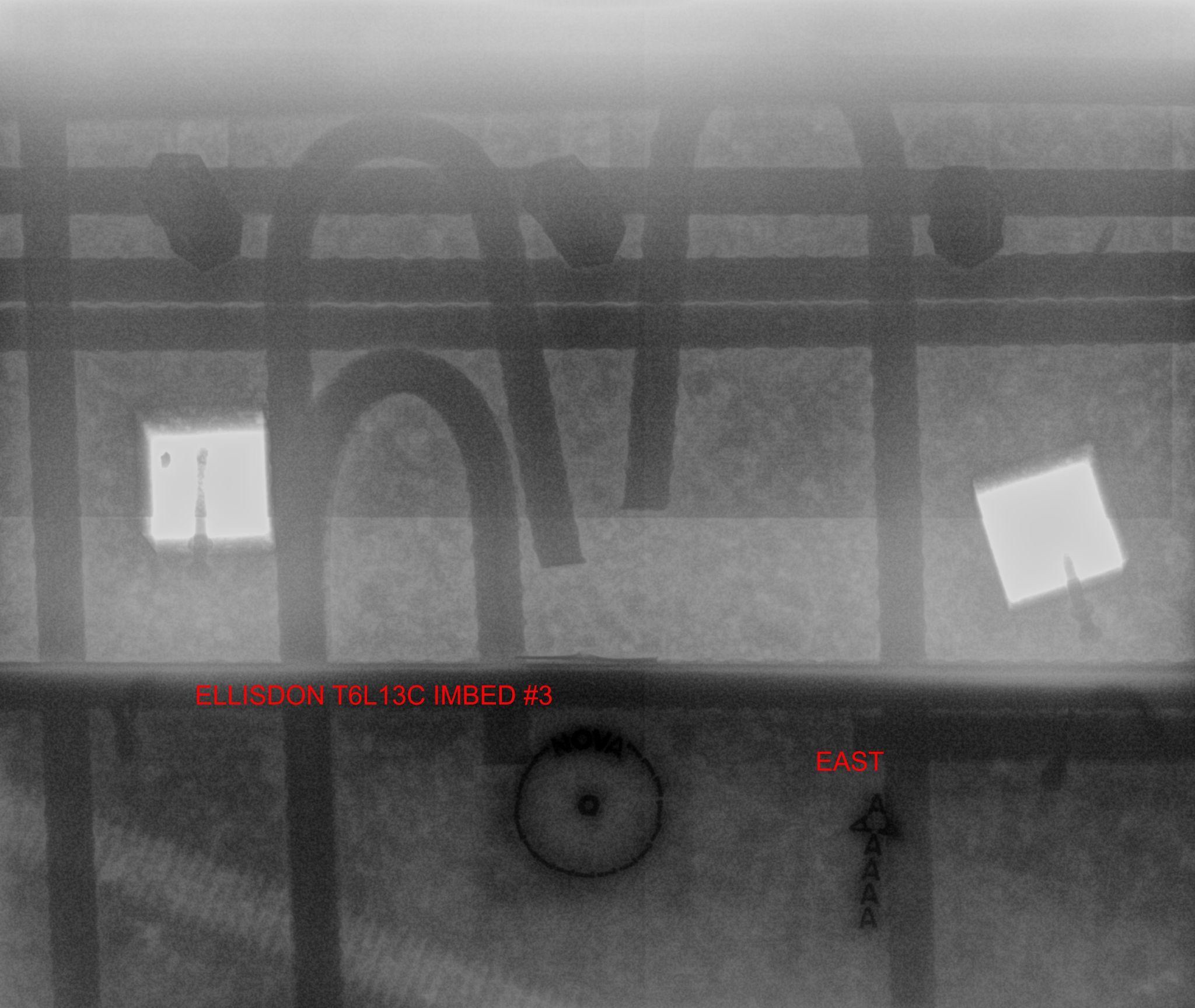

Window and curtain wall systems on high-rises come with prefabricated anchor plates, usually three bolt holes set in a fixed pattern. Once the first pin goes in, the second and third aren't something you nudge over if they land wrong — the plate dictates all three positions at once. That means the exact spot has to be confirmed before the first hole is drilled, not corrected afterward, with a tolerance that runs down to about an eighth of an inch.

That's tighter than a GPR read on a congested edge zone can reliably promise, and edge zones tend to be where embed density is highest. An x-ray machine for concrete gives the technician a confirmed position before the first pin commits the other two.

Case 4: When the Plan Already Calls for Cutting Rebar

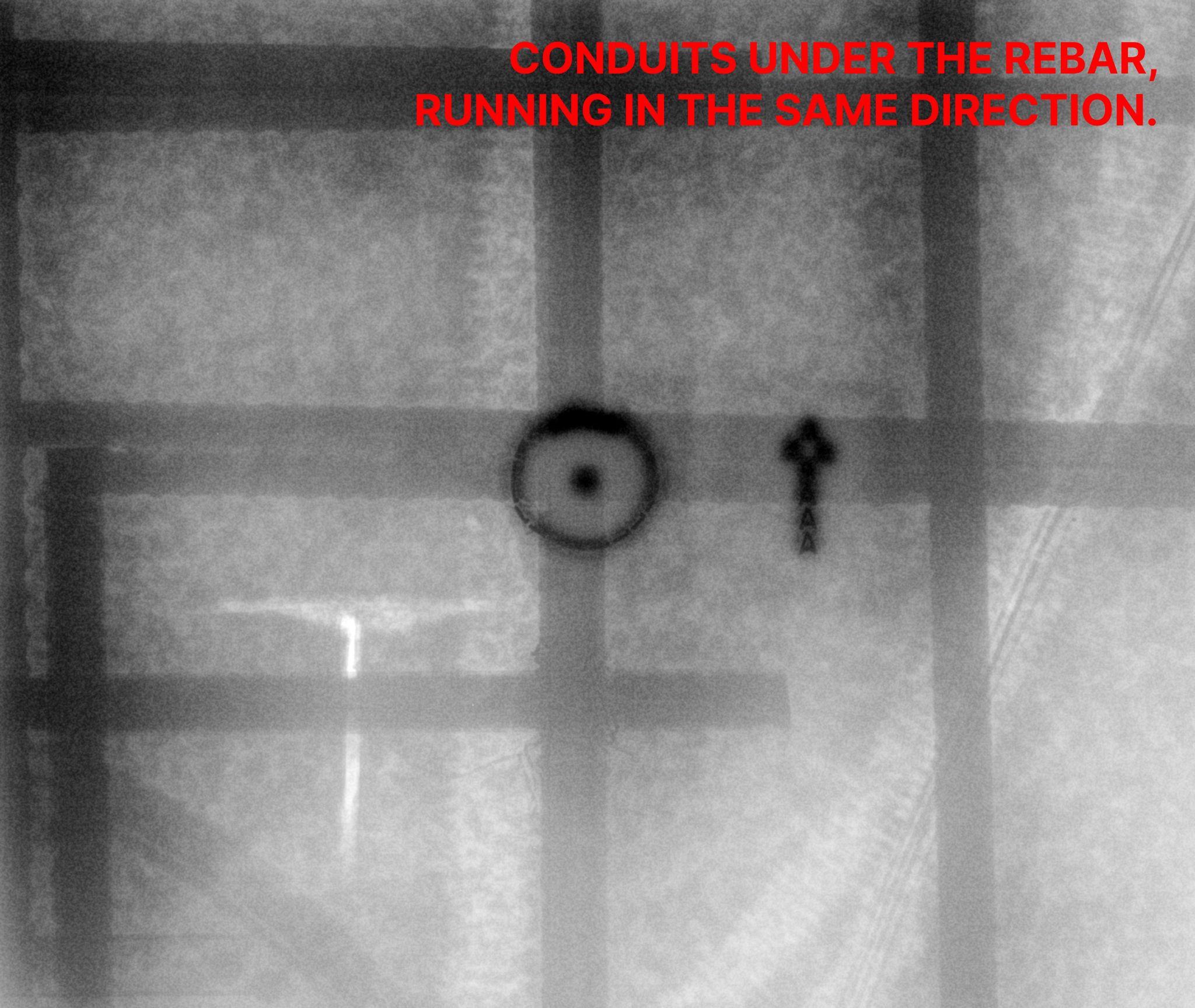

The standard rule on a suspended slab is that you don't cut anything you haven't planned for. So when an engineer has already approved cutting specific rebar to make room for a core, the risk isn't hitting a bar — that part's expected. The risk is what's riding under or tied to that bar. Conduit run beneath rebar, or lashed directly to it, can sit close enough that its hyperbola gets buried under the much larger rebar reflection on a GPR scan, effectively invisible.

A digital concrete x-ray sees straight through that layering, confirming there's nothing hidden under the bar before the cut is made. It's the one case on this list where the goal isn't avoiding an element — it's making sure the approved cut doesn't take anything else with it.

Case 5: Slabs Too Busy for Any Margin of Error

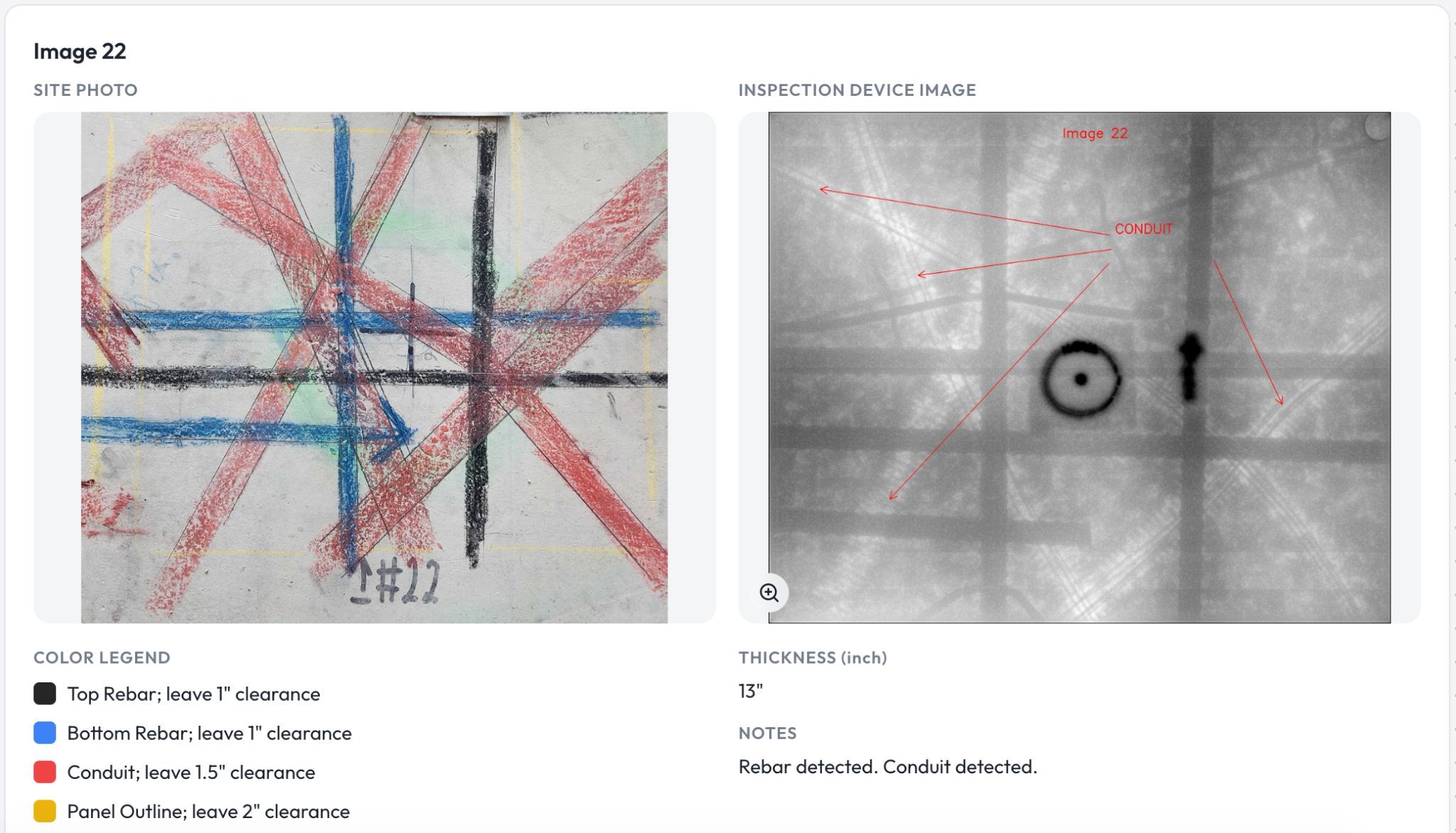

Some slabs don't have a problem spot — the whole area is the problem. A 14-inch slab carrying two or three layers of rebar stacked over a dense run of conduit, with clearance requirements that keep you a couple of inches clear of certain elements, doesn't leave a clean zone to fall back to if a GPR read comes back uncertain. At that thickness and with that much layering, GPR resolution starts working against you rather than for you.

The practical case for a concrete x-ray machine here isn't really about the congestion at all — it's about what's already sitting in the van. Setup runs about 15 to 30 minutes, and the shot itself takes roughly 120 seconds at that thickness. Compared to the cost of a wrong guess on a slab this dense, that's a cheap trade, for the crew and for the client. Radii-x's own EVO 300D-900 x-ray source is built to handle exactly this depth.

A Note on the Technician, Not Against Them

None of these five cases exist because a GPR technician might get it wrong. Good operators read slabs well, and that's not what's being questioned here. What a digital concrete x-ray does is take the full weight of that call off one person's shoulders on the jobs where the cost of a mistake — a severed PT cable, a redrill through a load-bearing bar, a damaged conduit, an insurance claim, a delayed pour — is disproportionate to the few extra minutes a confirmation shot costs. That's not quality control layered over a technician's skill. It's one less high-stakes decision they have to carry alone on a job that was already asking a lot of a single read.

Closing Thoughts

Once a crew can name which of these five cases they're standing in front of, the decision isn't really a judgment call anymore — it's a checklist. GPR still runs first on every job, no exceptions. The only thing that's changed is that a digital concrete x-ray machine no longer has to sit outside the company as something you call in or refer out for. It's a tool the crew runs itself, on the same visit, the same day.

If you're a GPR operator weighing whether that capability belongs in-house, this breakdown of the investment case walks through what that actually looks like, and this comparison covers where digital x-ray and GPR genuinely differ. Radii-x builds the source and panel system coring and GPR companies use to run digital concrete x-ray as their own in-house step, not a referral.
